We are manufacturer of fluropolymer / poly-ethylene lined system with more than 10 years of experience with maintaining good quality with the help of self research and developed customized machineries. We use Virgin PTFE, PVDF ...Read More

PRIFLON FLUORO SYSTEMS

We are manufacturer of fluropolymer / poly-ethylene lined system with more than 10 years of experience with maintaining good quality with the help of self research and developed customized ma... read more

Our Products

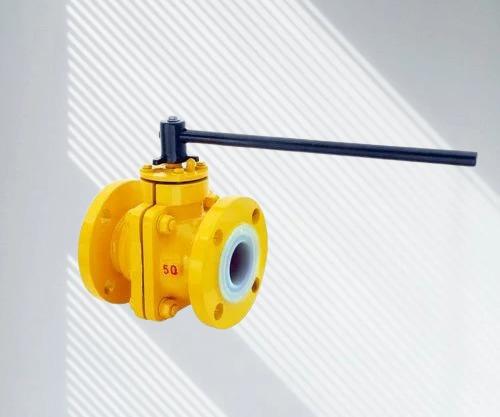

Salient Features‘Maintenance Free’ Glandless Live Load DesignOne Piece Integral Ball Stem CombinationMinimum Cavity & Full Flow EfficientNo Backlash in Stem & Ball even after prolonged service.Exceptionally Low Torque as compared to Plug Valve.Technical SpecificationDesign Standard : BS EN ISO 17292:2004 (Formerly BS 5351)Drilling : ASA #150 / DIN 2632/2633 / BS 10 Table D, E or F / Customer Specified.Face to Face : ANSI B 16.10 / DIN 3202 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionDuctile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining Material PFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²Hydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAntistatic ClipPneumatic ActuatorGear Box

LINED BALL VALVE

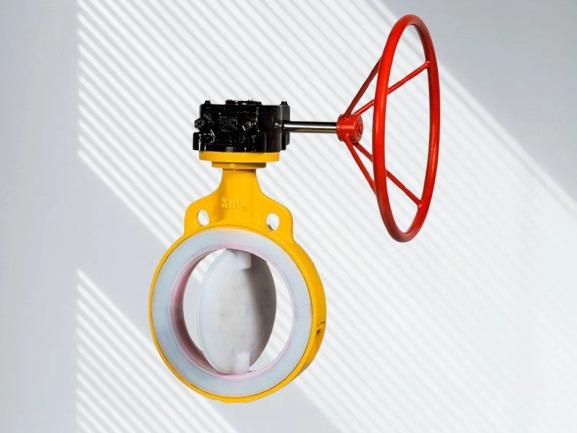

Salient FeaturesMaintenance Free’ High Performance Design.Bubble Tight Closer provides process efficiency.Dynamic Live Loaded Seal Design give super safe operation.Intact Performance in severe conditions of corrosion, abrasion, and temperature fluctuation.Technical SpecificationDesign Standard : BS EN 593:2004 (Formerly BS 5155)Drilling : ANSI B16.5 / DIN PN10/16Face to Face : API 609 / DIN 3202 K1 / BS 5155 / ISO 5752 / BS EN 558-1/2Lining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. OptionCast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / S.S.304ASTM A351 Gr. CF8M / S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Seat – 11 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C

WEFAR TYPE LINED BUTTERFLY VALVE

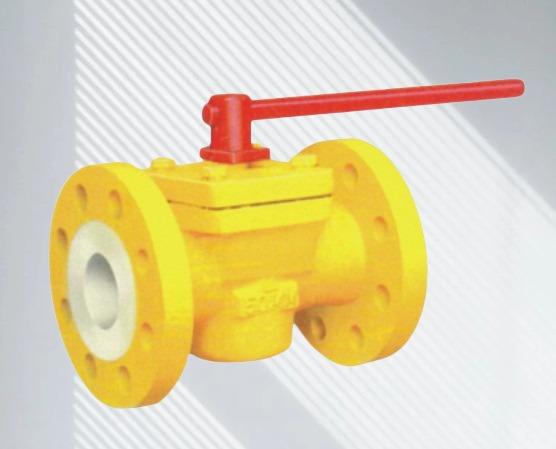

Salient FeaturesCavity Less High Performance Design.Zero Leakage (Class VI Leakage Rate) due to large sealing area.Unique Lining makes it Fully Locked from Top, Bottom & Port.Totally Maintenance Free Design.Technical SpecificationDesign Standard : BS 5158:1989Flange : As per ANSI B16.5 / B16.42Drilling : ASA #150 /DIN 2632/33 / BS 10 TABLE D, E, FLining Thickness : 3 to 5 mmTesting Standard : BS EN 12266-1&2 (2003)MaterialM.O.C. Option Ductile Iron GGG40.3 / ASTM A395Cast Steel ASTM A216 Gr.WCBASTM A351 Gr. CF8 / AISI S.S.304ASTM A351 Gr. CF8M / AISI S.S.316Lining MaterialPFA | FEP | PVDF |PP | HDPETest & Inspection DataHydraulic Test¥ : Body (Shell) – 20 Kg/Cm²,Seat – 10 Kg/Cm²Pneumatic Test¥ : Seat – 6 Kg/Cm²Spark Test :15 K.V. D.C.Optional Design & ComponentsAnti-static ClipGear BoxPneumatic ActuatorJacketed Plug Valve DesignSleeved Plug Valve Design

LINED PLUG VALVE

View All Products

about PRIFLON FLUORO SYSTEMS

about our organization

We are manufacturer of fluropolymer / poly-ethylene lined system with more than 10 years of experience with maintaining good quality with the help of self research and developed customized machineries. We use Virgin PTFE, PVDF...Read More

9
Products Available

lATEST NEWS

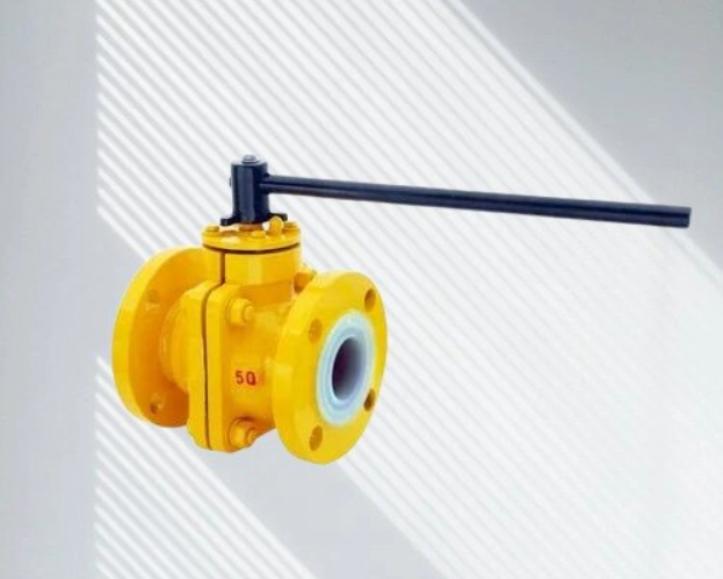

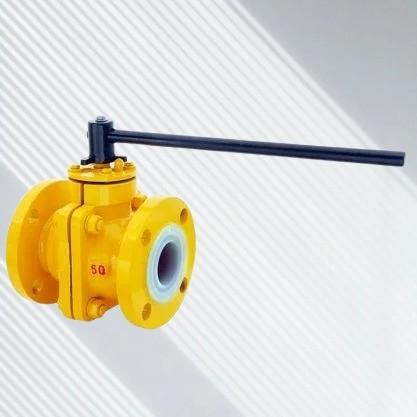

PRIFLON FLUORO SYSTEMS has built its reputation as

lined ball valve manufacturers in baroda

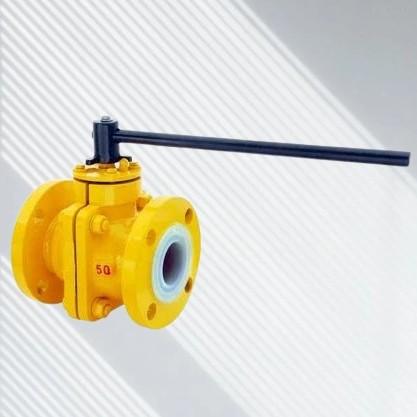

PRIFLON FLUORO SYSTEMS has earned recognition as a

fep lined ball valve and butterfly valve manufacturers in ahemdabad

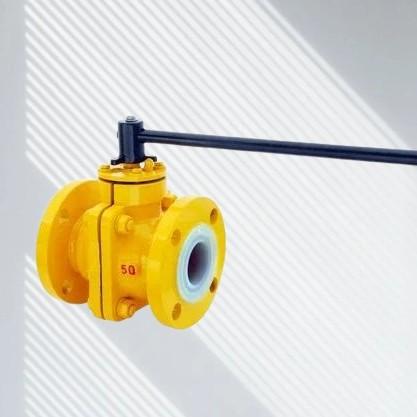

When it comes to reliable performance in challengi

PFA line ball valve and butterfly valve manufacturers in gujarat
